Configuration parameters
|
|
CPU
|

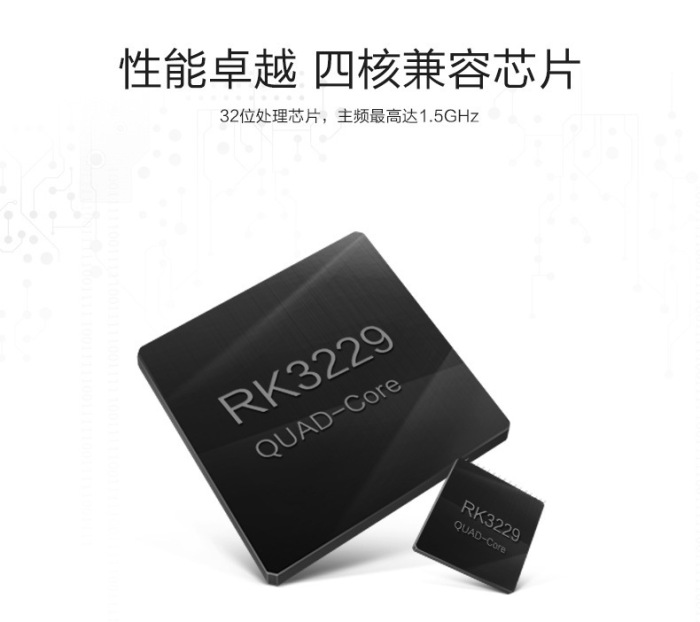

Rock chip-RK3229-Cortex A7-Quad core( 1.5 GHz)
|
|
GPU
|
Quad core Mali-400
|
|
OS
|
Android 6.0 Kikat
|
|
Memory(RAM)
|
1GB DDR3
|
|
Storage(ROM)
|
8GB （optional 16GB/32GB）
|
|
LAN
|
Ethernet:10M/100M
|
|
WIFI
|
802.11b/g/n
|
|
Bluetooth
|
Nonsupport
|
|
The main function
|
|
High definition output
|
4K 30fps H.264/4K 60fps H.265/1080P 60fps
|
|
3D
|
Support
|
|
User interface
|
Using the Android system interface style
|
|
Browser
|
Browse webpage
|
|
Media format
|
AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
|
|
Audio format
|
MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
|
|
Picture format
|
HD JPEG/BMP/GIF/PNG/TIFF
|
|
Mouse/ Keyboard
|
Support usb mouse/keyboard , 2.4GHz wireless mouse and keyboard
|
|
Storage Expansion
|
MINI SD memory card and mobile hard disk expansion
|
|
Interface definitions and specifications
|
|
USB
|
4 * USB HOST 2.0
|
|
SD card
|
1 * SD card
|
|
LAN
|
1 * RJ45
|
|
HDMI
|
1 * HDMI (1.4B)
|
|
AV
|
1 * AV (CVBS)
|
|
S/PDIF
|
1 * OPTICAL (S/PDIF)
|
|
Voltage parameters
|
5V-2A Input100-240V~50/60Hz
|
|
Appearance description
|
|
Product Dimension
|
118mm*118mm*28mm
|
|
Product weight
|
145g
|
]
